Masterbatches Container Mixer PVC Small Powder Mixing Machine

Model NO. : CM300-D

Transport Package : Fumigation Wooden Box

Specification : CE, ISO, SGS

Trademark : DEGOLD

Origin : Chongqing, China

HS Code : 8474390000

Supply Ability : 50sets/Year

Container Volume : 300L

Application : Masterbatches, Powder Coatings, PVC etc.

Control : PLC

Running Time : 3-5min

Automatic Grade : Automatic

After-Sales Service Provided : Engineers Available to Service Machinery Overseas

Customization : Available | Customized Request

Contact Now

Automatic Container Mixer for Powder Coating Masterbatches Customized to Your Needs

Masterbatches Container Mixer PVC Small Powder Mixing Machine

Masterbatches Container Mixer PVC Small Powder Mixing Machine

The CM-D series container mixers are used for powders production.
The CM series of container mixers provide the best alternative to conventional high speed mixers when production conditions require a high versatility and a wide range of different products to be mixed with the same mixer.
Thanks to the container mixer special design divided into two separate units, mixing head and protable container, the cleaning time between batches is minimized therefore the risk of contamination too when switching from one type of production to another.
Mix, storage and transportation are optimized by directly using the same containers that can be easily inserted in a dosing system either to a weighting scale or an extruder feeder.

After mixing has been finished, the container will be turned down to the basic position. Container's design will meet the transportation requirement, so it is easy to transport the materials to the following extruding processing line.
Do not worry about the cleaning also, because the mixer can be cleaned quickly and without any residues be left in the cleaning positon.

Applications:

Powder coating	Master batch (PE, PP, PA, PVC, PS, ABS, TPE, EPS...)	Dye concentrates
Brake linings	Additives (e.g. TiO2, CaCo3, Zn, MgO...)	Silic acid with liquids
Leather fibers	Toner (premixtures and finished mixtures)	Construction materials
Food	PVC (hard/soft) preparation (without cooling)	Cosmetics
PTFE	Pencil and colored pencil leads	Metal compounds (MIM)

Traits:
1. Double speed mixing, with frequency converter, two mixing blades: One is for premixing, the other smaller one is for dispersing, in order to make mix result much more effective.
2. Quick and easy cleaning of the mixer. The mixer is cleaned by pivoting the mixing head without the container into a position favorable for the operator, without having to perform any other modifications to the machine.
3. The many possible uses of the container. Feeding, mixing, transporting and emptying in the same container.
4. Electrical Control is adopted with man-machine interface and PLC, which results in high automation, operating convenience and reliability.
5. Maximization of Mixing Time
6. Filling/Discharging Remote of Mixing Area
7. Solids and Liquid Additions can be added During Mixing

Technical Data:

	CM50	CM150 CM150-D	CM300 CM300-D	CM600 CM600-D	CM1000 CM1000-D
Total volume:	50L	150L	300L	600L	1000L
Effective volume:	40L	120L	240L	480L	800L
Mixing motor power:	4kW	11kW	11kW	22kW	30kW
Blades rotary speeds	211r/min	965r/min	126/730r/min	90/740r/min	90/740r/min
Rotary motor power:	0.37kW	0.37kW	0.75kW	1.5kW	2.2kW
Lifting motor power:	--	--	2×0.55kW	2×0.55kW	2×0.55kW
Compressed air:	0.6Mpa, 1/4" interface port
Working voltage	380V 50Hz (it can be customized)
Controlling voltage:	24V
Container outlet butterfly vavle diameter:	100	150	200	250	250
Dimension Length L L1 Width W W1 W2 W3 Height H H1 H2 H3	--mm --mm --mm --mm --mm --mm --mm --mm --mm --mm	2000mm 1500mm 950mm 640mm 925mm 800mm 1800mm 2100mm 1175mm 1300mm	2200mm 1900mm 1010mm 915mm 1015mm 900mm 2250mm 2355mm 1350mm 1550mm	2700mm 2400mm 1100mm 1070mm 1200mm 900mm 2550mm 2675mm 1500mm 1700mm	3290mm 2890mm 1550mm 1266mm 1573mm 1325mm 3056mm 3477mm 1900mm 2130mm

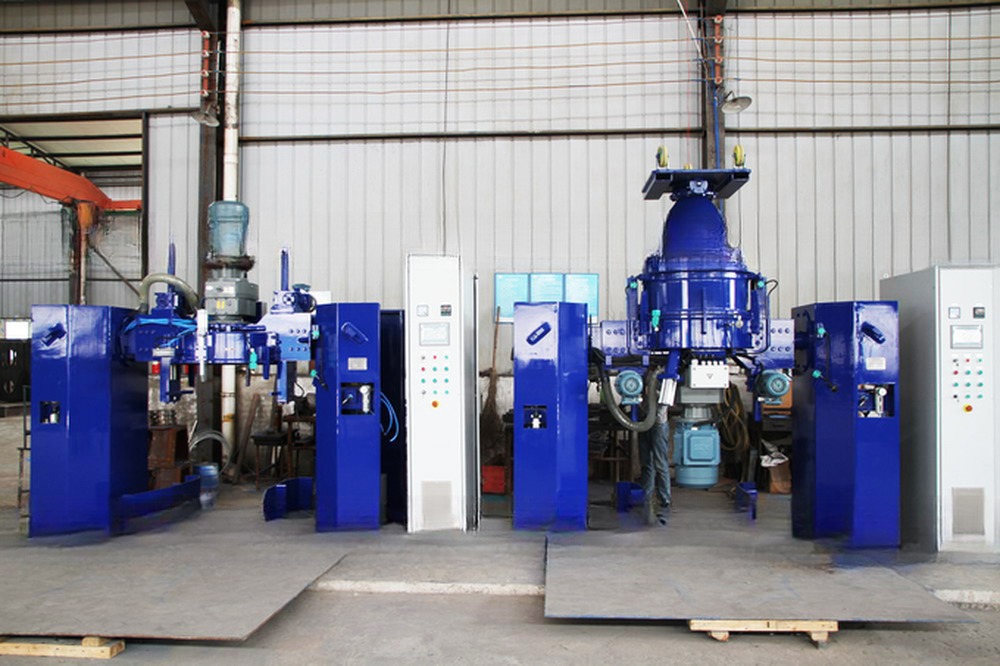

Automatic container mixers under process:
