Pastes High Speed Mixer Dispersion Shaft Rotary Speeds With Arm Clamper

Model NO. : FS22YB

Ex Proof Type : Ex Proof and Non Ex Proof

Transport Package : Fumigation Wooden Box

Specification : CE, ISO9001, SGS

Trademark : DEGOLD

Origin : Chongqing, China

HS Code : 8474390000

Supply Ability : 500sets/Year

Dispersion Shaft Lifting Type : Hydraulic

Main Motor Power : 22kw

Application : Paints, Inks, Pigments, Pastes etc.

Function : Pre-Mixing

Dispersion Disc Material : Ss304

Dispersion Shaft Rotary Speeds : Inverter Controls

Customization : Available | Customized Request

Contact Now

Dispersion Shaft Rotary Speeds Inverter Controls High Speed Mixer with Arm Clamper Pastes High Speed Mixer Dispersion Shaft Rotary Speeds With Arm Clamper

Product Description

DEGOLD High Speed Disperser for paint industry

DEGOLD FS series high speed disperser is a kind of machine which is used for stirring, mixing, dissolving and dispersing the materials in liquid and powder solid. This series of agitators can be easily operated with hydraulic elevation and rotation frame.

DEGOLD FS series dispersers are adopting a compacted design which consists of lifting device, driving device, mixing device, hydraulic device etc.

The motor has the function of CV lifting; The shaft rotation speed can be changed according to customers' needs. The peripheral velocity will be 17m/s.

Principle of Operation:

The high speed of the mixing head makes the raw materials turn over and over so as to shear and mix the materials completely.

We produce the high speed dispersers with following kinds motor powers:

5.5kW, 7.5kW, 11kW, 15kW, 18.5kW, 22kW, 30kW, 37kW, 45kW, 55kW, 75kW.

Application

Pastes High Speed Mixer Dispersion Shaft Rotary Speeds With Arm Clamper

Technical Data

		FS5.5	FS7.5	FS11	FS15	FS18.5	FS22	FS30	FS37	FS45	FS55	FS75
Main motor power (kW)		5.5	7.5	11	15	18.5	22	30	37	45	55	75
Dispersion shaft rotary speeds (r/min)		0~1500						0~1200			0~1000
Dispersion shaft lifting height (mm)		1200						1400			1500
Estimated batch		350	400	450	500	700	1000	1500	2000	2500	3000	4000
Dispersion discs diameter (mm)		200	250	250	250	300	300	350	400	450	500	550
Dimension	L	1655				2150		2120			2500
	W	570				800		900			1000
	H	1880				1960		2200			2500
Net weight		1140	1155	1165	1830	1850	1885	2000	2055	2085	2310	2425

Production Line

Pastes High Speed Mixer Dispersion Shaft Rotary Speeds With Arm Clamper

Our Services

We can send out one or two technicians to buyer's location for providing installation and training service.

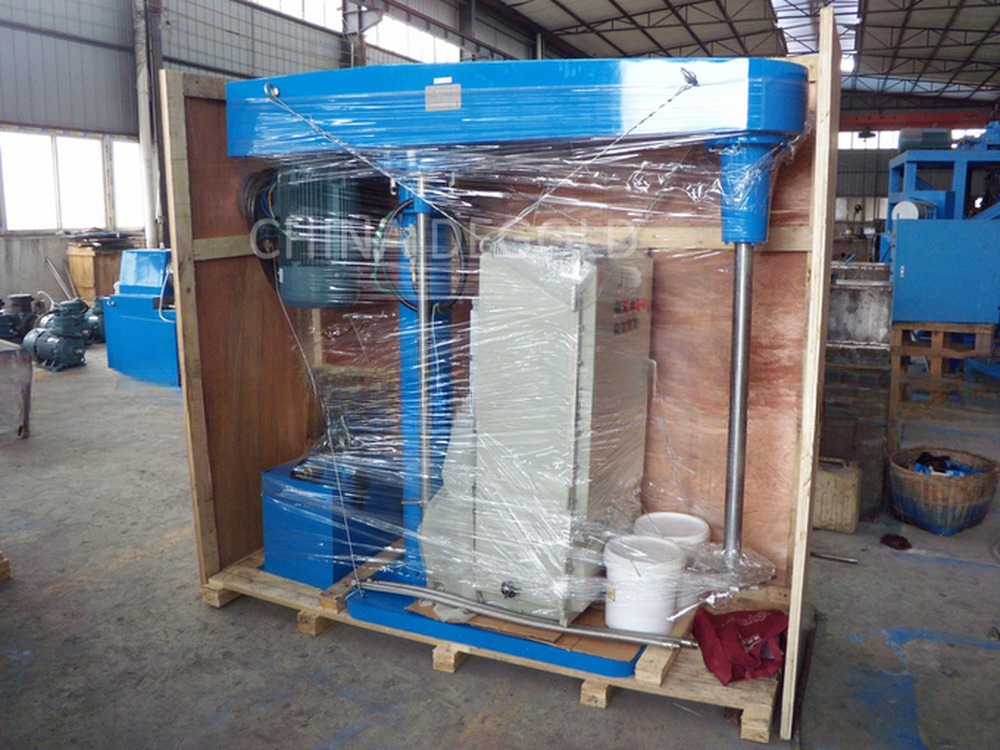

Packaging & Shipping

Fumigation wooden box.

Pastes High Speed Mixer Dispersion Shaft Rotary Speeds With Arm Clamper
